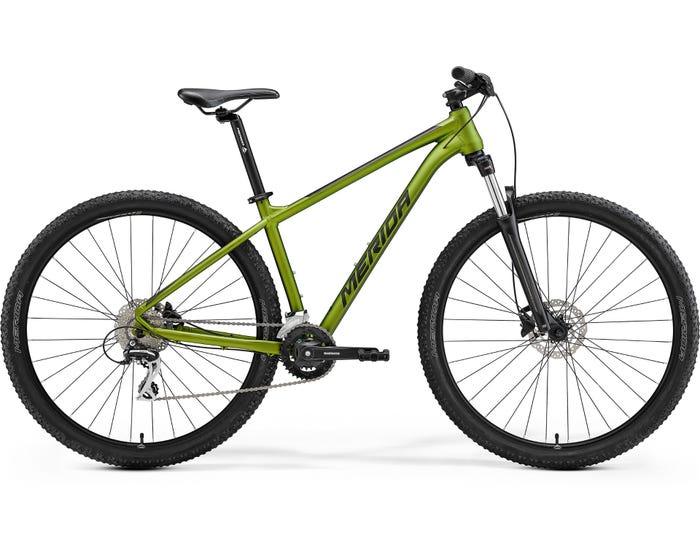

MERIDA BIG.NINE | 29er Aluminium Hardtail Mountain Bike

An aluminium hardtail with fast-rolling 29er wheels, 100mm front suspension, and a triple chainset — offering plenty of gears, comfort, and control out on the trails.

Specifications

• Intended Use — Mountain
• Wheel Size — 29"
• Braking System — Power Hydraulic Brake System
• Frame Material — Aluminium
• Fork Material — Aluminium

Components

• Frame — BIG.NINE TFS III, aluminium, 29x2.25" max. wheelsize, 135x9mm axle, BSA bottom bracket
• Fork — SR Suntour XCT30 HLO, coil, 100mm suspension travel, lockout, 29x2.25" max. wheelsize
• Bottom Bracket — FSA TH-7420ST-W, cartridge bearing
• Chain — SunRace M84
• Crank — Shimano TY301, 42-34-24T, 170mm (S) – 175mm (M/XXL)
• Shift Levers — MicroShift TS39-L / TS39-8R
• Cassette — SunRace CSM668, 11-32T, 8-speed
• Front Derailleur — Shimano FD-TY700
• Rear Derailleur — Shimano RD-M360
• Grips/Bartape — MERIDA EC
• Handlebar — MERIDA CC, aluminium, 690mm width, 15mm rise
• Stem — MERIDA CC, aluminium, 31.8mm diameter, 6° angle, 70mm (S) – 110mm (XXL)
• Saddle — MERIDA SPORT COMFORT
• Seatpost — MERIDA CC, aluminium, 30.9mm diameter, 15mm setback
• Front Brake — Power DS100, 2-piston hydraulic disc
• Rear Brake — Power DS100, 2-piston hydraulic disc
• Front Wheel — MERIDA CC / Shimano TX505, 100x9mm, 32-hole, Centerlock
• Rear Wheel — MERIDA CC / Shimano TX505, 135x9mm, 32-hole, Centerlock
• Tyres — MERIDA K1080, 29x2.2", wire bead
• Pedals — VP VPE-891
